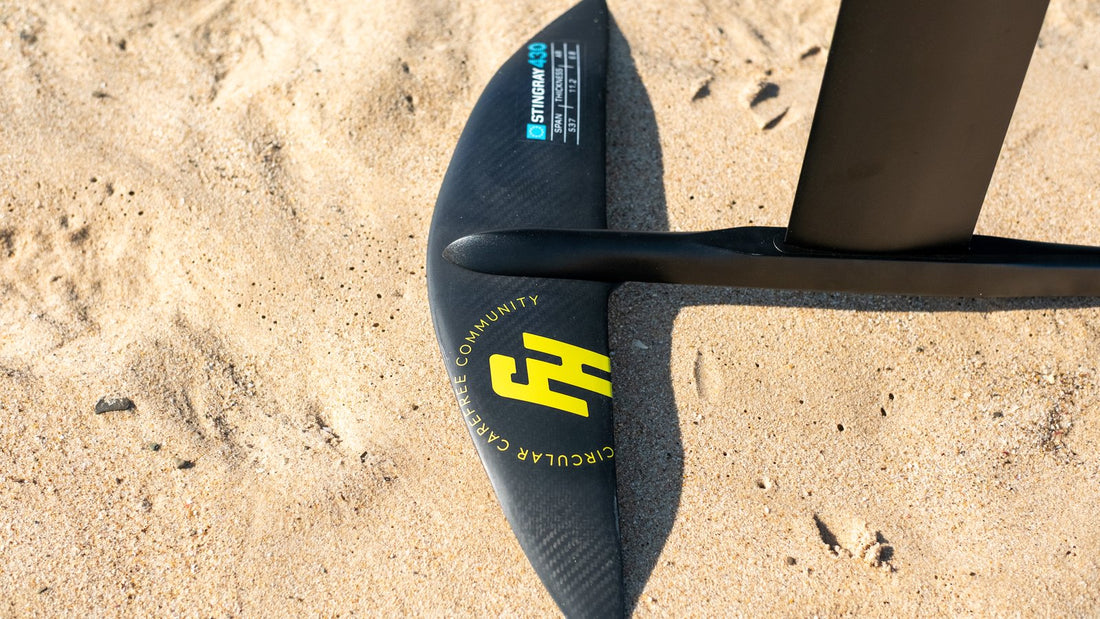

FoilHive carbon front wing on Tarifa sand with ocean horizon

How to choose your first hydrofoil front wing (2026 guide)

Last reviewed and updated: May 2026.

Your first hydrofoil front wing should be sized by three variables: rider weight, your typical wind range, and discipline. For a 70–85 kg wing foiler in 14–20 knots, that means a 1450–1850 cm² mid-aspect wing such as the Osprey 1850. Get the size wrong and progression stalls; get it right and foiling clicks within a handful of sessions.

If you've decided to get into foiling, kite foil, wing foil, or SUP foil, the first real decision is almost always the same: which front wing size should I start with?

Get it right and foiling feels magical within a few sessions. Get it wrong and you'll spend weeks struggling to pop out of the water, or fighting a twitchy wing you can't control.

This guide is what we wish every new rider read before their first session. We'll walk through the three variables that actually matter, give you a clear rider-weight-by-wind table, and name the specific wings we'd put a new foiler on, based on what we see every week in Tarifa.

The three decisions that actually matter

Everything else, aspect ratio, thickness, carbon layup, brand preference, is a refinement on three base decisions:

  1. What discipline? Kite foil, wing foil, SUP/prone foil, or windsurf foil. Each has a different "useful wind range" and a different speed profile.
  2. How much do you weigh? Heavier riders need more surface area to lift off at the same wind speed.
  3. What are your typical conditions? The wind range you ride in most sessions, not the best day of the year.

That's it. Once you know those three, the right wing size falls out of a small table.

The sizing table: rider weight × wind

This is our starting-point chart for a single all-round wing for a newer foiler. Pick the row for your weight, then the column for your typical wind range. The number is the surface area (in cm²) that puts you in the sweet spot.

Rider weight 8–14 kt (light) 14–20 kt (medium) 20–28 kt (strong)
< 60 kg 1450 cm² 950–1250 cm² 550–750 cm²
60–75 kg 1850 cm² 1250–1450 cm² 750–950 cm²
75–90 kg 1850–2250 cm² 1450–1850 cm² 950–1250 cm²
90+ kg 2250 cm² 1850 cm² 1250–1450 cm²

A few notes on how to read this:

  • If in doubt, go bigger. A slightly oversized wing is far easier to learn on than a slightly undersized one.
  • Wing foilers typically size up vs. kite foilers at the same rider weight and wind, because a handheld wing generates less drive than a kite.
  • SUP / prone foilers work off wave energy, not wind, use a low-aspect surf wing in the 830–1160 cm² range regardless of the table above.

Osprey vs Stingray vs Albatros: which family is right?

FoilHive's front wings fall into three families, each tuned for a different riding style. Picking the right family is as important as picking the right size.

Osprey: the all-round freeride family

Aspect ratios 7.0–9.9. Sizes from 550 to 2250 cm².

The Osprey line is our default recommendation for 90% of new foilers. Moderate aspect ratio means the wing is forgiving, it lifts early, stalls gracefully, carves predictably. If you don't have a specific reason to go surf-focused or race-focused, start here.

Good picks inside the family:

  • Osprey 1850, the "learn here" wing for 70–95 kg riders
  • Osprey 1450, the "one wing for most days" if you only own one
  • Osprey 950, when you're confident and want more speed

Stingray: the surf and wave family

Aspect ratio 6.8 across the range. Sizes from 430 to 830 cm².

Lower aspect = more roll responsiveness, tighter carves, less raw glide. If your sessions are mostly surf foiling, prone foiling, or light-wind wing sessions in waves, this family banks into turns in a way the Osprey simply can't.

Not the right family for your first wing if you're learning on flat water, the lower aspect makes pumping between gusts harder. But if you live for drawing lines on a wave face, the Stingray 830 is an excellent entry.

Albatros: the race and downwind family

Aspect ratios 13.0+. Sizes from 860 to 1160 cm².

High-aspect wings trade turning feel for efficiency, they stay in the air longer on less power, which is exactly what you want on a race course or a long downwinder. Not a beginner wing: the high aspect punishes a twitchy stance, and they're less forgiving when you stall.

If your goal is SUP downwinders between bumps, or winning the local wing foil race, the Albatros 1160 is the one. Otherwise, circle back to this family later.

Five mistakes we see new foilers make

After building, repairing, and fulfilling foils out of our Tarifa warehouse every week, here's what we see go wrong most often:

  1. Buying too small "because you'll grow into it." You won't. On an undersized wing, a new rider spends most of the session swimming. Move up 600 cm² and they're up and riding within a few sessions. Start with more surface, size down when you can.
  2. Skipping the tail wing conversation. The tail wing controls pitch stability and turning behaviour. Pairing a big Osprey 1850 with a tiny advanced stab cancels out everything the front wing gives you. Start with a Stab 220.
  3. Obsessing over carbon-vs-aluminium mast. At beginner speeds the difference is marginal. Spend the money on the right size wing first; upgrade the mast when you can actually feel the flex.
  4. Choosing by price, not conditions. A €500 wing in the wrong size costs you more than a €900 wing in the right size, in sessions wasted, frustration, and eventually reselling to buy the right thing.
  5. Not adjusting as you progress. The wing that gets you foiling is almost never the wing you'll stick with. If you're locked into "I own this wing forever," you'll underuse it or plateau on it.

Start-here recommendations

To cut to the chase, here's what we put a new rider on, by profile:

If you'd rather see the decision visually, our Kit Builder lets you pick a front wing, tail wing, mast, and fuselage from our live catalog, see them assembled in an exploded hydrofoil diagram, and check out live membership pricing in one screen.

Why membership changes the math

There's one more thing worth saying, because it changes how this decision plays out over time.

The classic way to get into foiling is: spend €2000–€4000 on a complete setup, discover in your first ten sessions that you sized something wrong, and then spend another €500–€1000 reselling and rebuying to fix it. Most people eventually land on gear that works, but they pay the price of every wrong decision along the way.

The FoilHive membership removes that penalty. You pick a setup, ride it, and if it turns out to be the wrong size or the wrong family, you swap it, no resale hassle, no losing money on depreciation. Every wing, mast, and fuselage is designed and built by our sister brand ONIX Foils in Tarifa, Spain, then ships from the same workshop, so when gear comes back for a swap or a repair, it's inspected and re-issued by the team that built it rather than landfilled.

FoilCare is included on every membership, so normal wear from regular sessions is covered, no separate insurance to think about. Loyalty, referrals, returning packaging, even collecting a bag of beach trash all earn Hive Credits, which can offset shipping on swaps or stack toward a discount if you fall in love with a setup and want to buy it.

That's the practical version of our circular, non-profit mission: the right foil should be easy to start with, and easy to change when you outgrow it. We're real people who ride this gear in Tarifa every week, the recommendation here is what we'd tell a friend.

Curious whether membership actually pencils out vs. buying outright? We did the honest 3-year math.

FAQ

Do I really need a bigger wing than my friends recommend?

Almost always, yes. Experienced foilers underestimate how much easier a bigger wing makes the learning phase. A bigger, more forgiving wing dramatically cuts learning time, what we see consistently with riders coming through our Tarifa workshop. Start bigger, size down later.

How many wings do I eventually need?

Most riders end up with two front wings, a "most days" size and a "windy days" size. With membership, you can start with one and add or swap later instead of buying both upfront.

Does brand really matter if the sizes are similar?

Shape, profile, and layup matter more than label. Within the FoilHive range, an Osprey 1250 and a Stingray 830 are similar surface area but ride completely differently. Focus on the family (Osprey / Stingray / Albatros) before the number.

What about the mast and fuselage?

For learning and for almost all freeride sessions, the 80 cm aluminium mast and 66 cm fuselage are the standard pairing. These are template-compatible with every FoilHive wing, so you don't have to rethink them as you swap front wings.

Can I change my setup after subscribing?

Yes. Our Gear Swap system lets you swap components as you progress, we inspect, repair, and re-issue returned gear from our Tarifa warehouse. Membership is designed for progression, not lock-in.

Next step

If you read this and still aren't sure, two options:

  1. Use the Kit Builder, browse front wings, tail wings, masts, and fuselages from the live catalog and build a complete setup visually with the monthly cost shown.
  2. Email us at hello@foilhive.com with your weight, discipline, and typical conditions. We'll send back our recommendation in a day.

Either way, the worst decision is guessing. Let's get you on the right foil the first time.

Written by Sam Carentz, co-founder of FoilHive. Sam runs the Tarifa workshop where every FoilHive wing is built, inspected, and repaired, and is a foil designer and engineer who also designs for ONIX Foils and North Foils. Meet the rest of the team on our Meet the Hive page.
